5-Axis Machining Centers

Lines of 5-Axis Machining Centers designed to provide unsurpassed productivity in the machining of complex workpieces of any dimension in single setup.

/Products/

5-Axis Machining

YOUR BENEFITS

Your Business Will Benefit from Using 5-Axis Machining Centers

Get the same work done THREE times faster than metal-working 5-Axis Machining Centers

Fully Customizable to your exact business needs

Shorten product development cycle

Redefine your overall capabilities

FEATURED CLIENTS

Industry Leading Companies Trust CHENcan 5-Axis Machining Centers

PRODUCT FEATURES

Unlimited Machining Power at Your Finger Tips

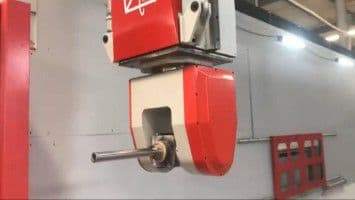

Bi-Rotational Heavy Duty Spindle Unit

5-Axis Motion Controller with RTCP Functionalities

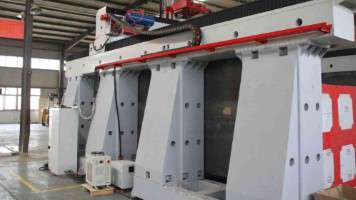

Stress-relieved Welded Steel Structure

Ball Screw Driving System

Horizontal Motion Stabilizing Mechanics

Vertical Motion Stabilizing Mechanics

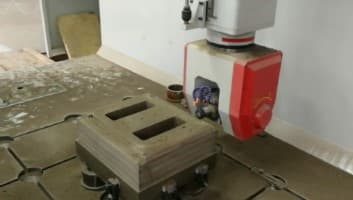

Automatic Tool Changing (ATC) and Calibrating

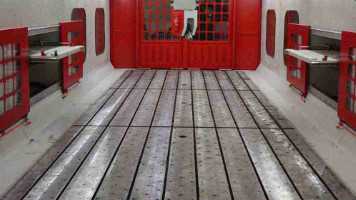

Multiple Table Options

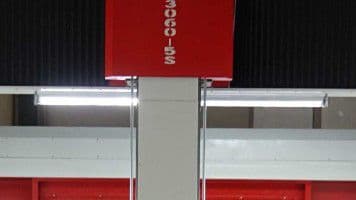

Gantry Lighting System

Model Comparison

Find out which model is most suitable for your business needs

More

Configuration

SE5-Series

SF5-SeriesπŸ”₯

SF5-Series XL

SG5-Series

Customize

Appearance

Brief

Most economical for medium size, light weight workpieces.

Best selling 5-Axis Machining Center Model.

Widely seen in automobile industry for 1:1 vehicle models.

Highly Rigid 5-Axis Machining Center for aluminum jobs.

Contact us to build the best fit machinery for your business needs.

Pricing

Starting From

$ ?.00FREE Consultation

Contact us

Starting From

$ ?.00FREE Consultation

Contact us

Starting From

$ ?.00FREE Consultation

Contact us

Starting From

$ ?.00FREE Consultation

Contact us

Starting From

$ ?.00FREE Consultation

Contact us

Top Features

βœ“: Standardβ—Œ: Optionalβœ—: Unavailable

Warrantee

12 Mo.12 Mo.12 Mo.12 Mo.Custom

Support

LifetimeLifetimeLifetimeLifetimeCustom

5-Axis Machining

βœ“βœ“βœ“βœ“Custom

RTCP Functionality

βœ“βœ“βœ“βœ“Custom

Variant

Fixed GantryFixed TableFixed TableFixed TableCustom

Materials

βœ“: Recommendedβ—Œ: Can Processβœ—: Avoid

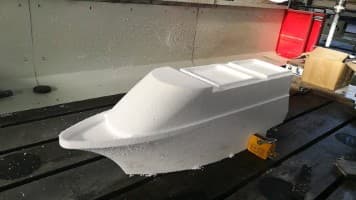

PS Foam

βœ“βœ“βœ“β—ŒCustom

Fiberglass / Carbon fiber

βœ“βœ“βœ“β—ŒCustom

Plastic / Composites

βœ“βœ“βœ“β—ŒCustom

Modeling Clay

βœ“βœ“βœ“β—ŒCustom

Tooling Board

βœ“βœ“βœ“β—ŒCustom

Wooden Materials

βœ“βœ“βœ“β—ŒCustom

Aluminum

β—Œβ—Œβ—Œβœ“Custom

Tech Specs

βœ“: Standardβ—Œ: Optionalβœ—: Unavailable

Spindle

15KW Liquid Cooling15KW Liquid Cooling15KW Liquid Cooling25KW Liquid CoolingCustom

Spindle RPM

0 ~ 24,000r/min0 ~ 24,000r/min0 ~ 24,000r/min0 ~ 24,000r/minCustom

Automatic Tool Changer

βœ“βœ“βœ“βœ“Custom

Table

Aluminum w/ T-slotsCasted-iron w/ T-SlotsCasted-iron w/ T-SlotsCasted-iron w/ T-SlotsCustom

X/Y/Z-Axis Driving System

Ball Screw w/ Servo MotorBall Screw w/ Servo MotorBall Screw w/ Servo MotorBall Screw w/ Servo MotorCustom

Control System

Lynuc / SyntecLynuc / SyntecLynuc / SyntecLynuc / SyntecCustom

Tool Holder

HSK 63FHSK 63FHSK 63FHSK 63ECustom

Rapid Travel Speed

XY 30m/min; Z 8m/minXY 30m/min; Z 8m/minXY 30m/min; Z 8m/minXY 30m/min; Z 8m/minCustom

Feed Rate

XY 15m/min; Z 8m/minXY 15m/min; Z 8m/minXY 15m/min; Z 8m/minXY 15m/min; Z 8m/minCustom

Machining Accuracy

Β±0.1mm/1000mmΒ±0.1mm/1000mmΒ±0.1mm/1000mmΒ±0.1mm/1000mmCustom

Total Power

30kW ~ 40kW40kW ~ 65kW40kW ~ 65kW40kW ~ 65kWCustom

Travel Options

Custom travel options are available upon request.

X[mm]

2500 ~ 30002500 ~ 45002500 ~ 45002500 ~ 4500Custom

Y[mm]

1300 ~ 20004000 ~ 70004000 ~ 70004000 ~ 7000Custom

Z[mm]

800 ~ 12001800 ~ 25001800 ~ 25001800 ~ 2500Custom

A[deg]

Β±120Β±120Β±120Β±120Custom

C[deg]

Β±360Β±360Β±360Β±360Custom

Pricing

Starting From

$ ?.00FREE Consultation

Contact us

Starting From

$ ?.00FREE Consultation

Contact us

Starting From

$ ?.00FREE Consultation

Contact us

Starting From

$ ?.00FREE Consultation

Contact us

Starting From

$ ?.00FREE Consultation

Contact us

FAQs

Frequently Asked Questions

Simultaneous 5-Axis Machining versus (3+2) 5-Axis Machining

What is RTCP (Rotation Tool Center Point) Functionality

How to pick: Moving Gantry versus Moving Table

What are the applicable industries of 5-Axis Machining Centers?

Please list all the materials that 5-Axis Machining Centers can process.

Is it easy to operate? Do you provide training?

Does your machine work with XXXX CAM software / Controller?

Do you provide installation, training, and other services globally?

Can we schedule a visit of your factory?
