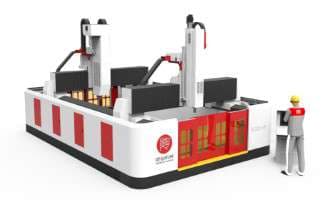

3D Hybrid Machining
Your Business Will Benefit from Using 3D Hybrid Machining Centers
Unlimited Machining Power at Your Finger Tips
Additive Manufacturing Functionalities
2nd Gen Pellets Feeding System

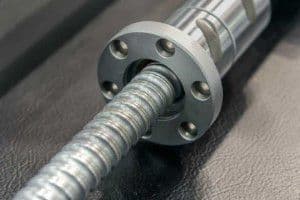

Ball Screw Driving System
Industry Proven Motion Controller

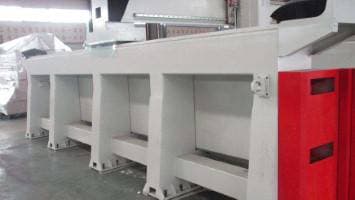

Stress-relieved Welded Steel Structure

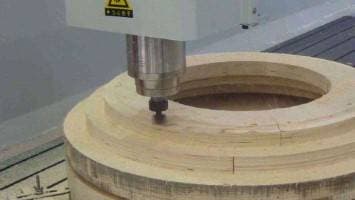

CNC Machining Center Functionalities
Green House Enclosure
Find out which model is most suitable for your business needs
Industrial 3D Printer.
Additive Manufacturing and Subtractive Manufacturing in one setup.
Contact us to build the best fit machinery for your business needs.
✓: Standard◌: Optional✗: Unavailable
|12 Mo.||12 Mo.||Custom|
✓: Recommended◌: Can Process✗: Avoid
Composite w/ Carbon Fiber
Composite w/ Fiberglass
ABS / PLA / PC
|✓: Standard◌: Optional✗: Unavailable|
|210℃ ~ 275℃||210℃ ~ 275℃||Custom|
Max Extruding Volume
|8.5 kg/hr||8.5 kg/hr||Custom|
|8mm / 14mm||8mm / 14mm||Custom|
|Ball Screw w/ Servo Motor||X Rack & Pinion; YZ Ball Screw w/ Servo Motor||Custom|
|Steel Plate w/ T-Slots||Steel Plate w/ T-Slots||Custom|
|✗||0 ~ 12,000r/min||Custom|
Rapid Travel Speed
|✗||XY 30m/min; Z 8m/min||Custom|
|✗||XY 15m/min; Z 8m/min||Custom|
Custom travel options are available upon request.
|1,500 ~ 3,000||1,500 ~ 3,000||Custom|
|1,500 ~ 3,000||Custom|
|1,500 ~ 3,000||1,500 ~ 3,000||Custom|
|600 ~ 1,200||600 ~ 1,200||Custom|
Frequently Asked Questions
What are the applicable industries of 3D Hybrid Machining Centers?
Depends on the setup of the 3D Hybrid Machining Centers, it is designed for but not limited to: - Automobile Related - Aviation Related - Foundry Related - Furniture Related - Maritime Related - Modeling Related - Sculpture / Scene Making / Interior Decor Related
Please list all the materials that 3D Hybrid Machining Centers can process.
3D Hybrid Machining Centers come with two gantries: the printing gantry, and the cutting gantry. The printing gantry works as any FM 3D printer, it melts plastic beads to form layers. The cutting gantry itself is a CNC Gantry Mill which is designed for rapid processing dozens of materials such as: - PS / PU / PMI foams - Carbon fibers - Plastics - Tooling boards / Blocks - Fiberglass - Modeling clay - Composite materials - Wooden materials - Solid woods
* Check out our brochure for details of each model.
Is it easy to operate? Do you provide training?
We are continually increasing the usability of our products. If you have used CNC Mills and 3D Printers before, most likely you will get 3D Hybrid Machining Centers up and running without much effort. Moreover, CHENcan provides multiple support plans, including on-site training, remote training, and on-campus training. Additionally, we have a vast library of pre-recorded tutorials and how-to videos for the common questions we have collected over the years.
* Ask your dedicated CHENcan sales consultant for more details.
Does your machine work with XXXX CAM software / Controller?
All 3D Hybrid Machining Centers controllers support G Code. If the software at your choice exports to international standard G code, you could expect 3D Hybrid Machining Centers to load it. Also, we are very flexible with the choice of motion controllers. If you prefer a specific brand model rather than our default options, we will try our best to adapt our machinery to fit it.
Do you provide installation, training, and other services globally?
Yes, for 3D Hybrid Machining Centers, we do offer the option for either in-house training or international installation, training, and maintenance services.
* Please keep in mind that, we only provide English / Chinese speaking services engineers at the moment.
Can we schedule a visit of your factory?
Yes, you could book an appointment with your dedicated CHENcan sales consultant for a tour of our factory. One of our bilingual (English / Russian / Chinese) client champions will provide you guidance for the visit.
* We may also provide airport pick up service according the availability of our limos.
Ask us anything! 👋😃 Feel free to talk to our client champions through any channel, and we are glad to help! Your interaction will also help us understand how we can better provide the information you’re looking for as efficiently as possible.
